Experience with UVEX3

PostPosted: Mon Feb 10, 2020 8:50 pm
by Antonino Ventura
Hi everyone, I introduce myself, I am a fan of spectroscopy, I live in Italy in the city of Latina. I undertook the construction of the UVEX3 referring to the Cristian Buill project. I must say that it was difficult to optimize this optical scheme, however I think I did it. I put some profiles on your impressions.

Greetings .

Tonino Ventura

M42

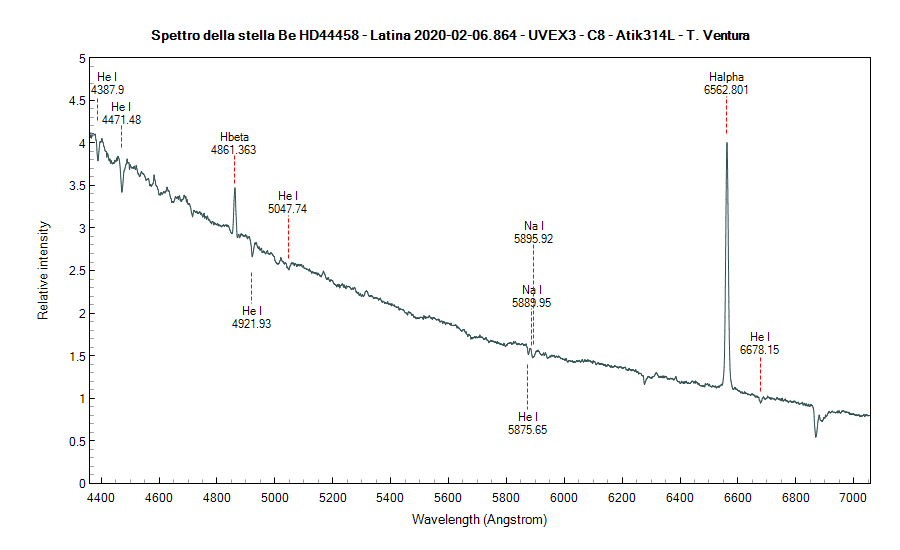

HD 44458

Re: Experience with UVEX3

PostPosted: Mon Feb 10, 2020 8:58 pm
by Francois Teyssier
Excellent. Congratulations.
[S II] well separated in M42 spectrum

All the best

François

Re: Experience with UVEX3

PostPosted: Thu Feb 13, 2020 1:20 am
by Christian Buil
Very excellent Antonino. The spectrograph seem very well adjusted because the symetric aspect of emission line (very limited coma).
Also, fine correction of the instrumental radiometric response. Your spectrograph is really operational!
Try to capture the UV part of the spectra by using your CCD camera.
I suppose, you use a 23 microns slit ?

Christian Buil

Re: Experience with UVEX3

PostPosted: Fri Feb 14, 2020 6:38 pm
by umberto sollecchia
Félicitations Antonino pour l'excellente réalisation et l'optimisation de ce spectroscope.
Merci à Cristian pour son projet à la disposition de tous ceux de bonne volonté.
Il ne reste plus qu'à produire de nombreux spectres.
Umberto

Re: Experience with UVEX3

PostPosted: Fri Feb 14, 2020 9:47 pm
by Antonino Ventura
Thank you Cristian. Yes, I am currently using a 23 microns slit purchased from Shelyak with the guide module.
I am still a beginner and I am followed by Umberto Sollecchia and Paolo Berardi, as soon as I acquire some experience I will definitely try to make spectra on infrared and ultraviolet, as recommended by you.
Greetings Tonino

Re: Experience with UVEX3

PostPosted: Sat Feb 15, 2020 4:21 pm
by Paolo Berardi
Ciao Tonino, nice to meet you on ARAS forum!
Excellent instrument and spectra... and it's all thanks to you, congratulations!

Paolo

Re: Experience with UVEX3

PostPosted: Sat Feb 22, 2020 8:36 pm
by Antonino Ventura
Good evening everyone. Two more observations with the self-built Uvex to which a 300l / mm grating is installed. For the calibration of the spectrum I used Relco lamps that are located inside the starters of the neon lamps. I placed these inside the lens hood along the internal circumference. I attach the profiles of the V694 Mon, Be I Hya and photos

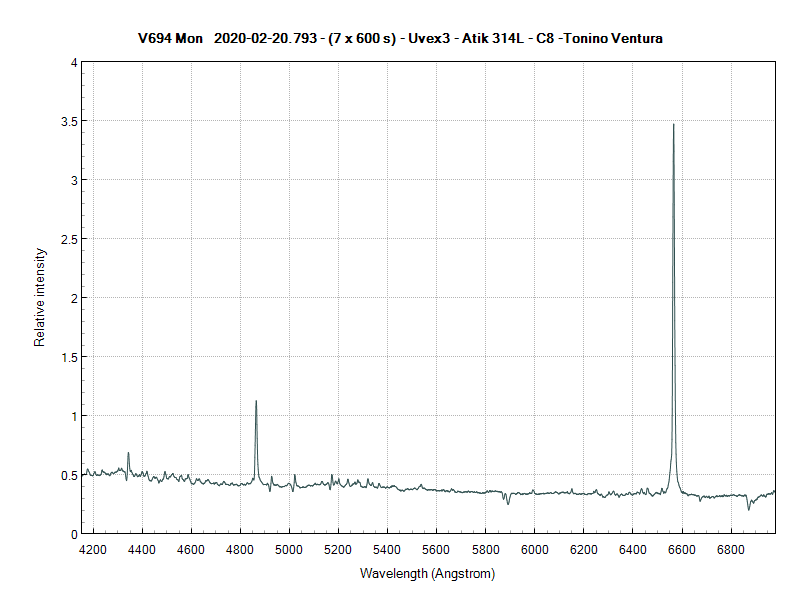

v694mon_20200220_793_T. Ventura (1).png
v694mon_20200220_793_T. Ventura (1).png (24.46 KiB) Viewed 2575 times

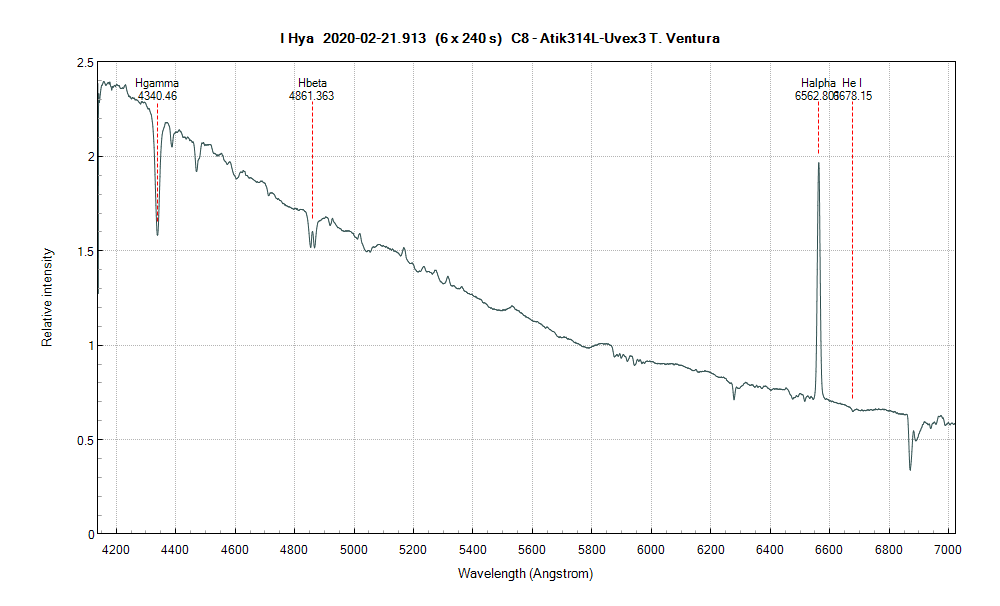

ihya_20200221_913_Tonino Ventura.png
ihya_20200221_913_Tonino Ventura.png (33.91 KiB) Viewed 2575 times







Re: Experience with UVEX3

PostPosted: Tue Feb 25, 2020 9:53 pm
by Hamish Barker
An ingenious arrangement of the multiple relco argon lamps! What exposure length do you need for them?

Perhaps a polished aluminium or stainless lid over the telescope during calibration could reflect more of their light inwards and eliminate any streetlight pollution.

Re: Experience with UVEX3

PostPosted: Wed Feb 26, 2020 8:37 am
by Antonino Ventura
usually use a 180s exposure but also with 120s it is fine. Good idea a polished lid.
By Tonino

Re: Experience with UVEX3

PostPosted: Thu Feb 27, 2020 8:43 pm
by Antonino Ventura
Hi Hamish. Previously I forgot to attach a frame of the Relco lamps used for calibration positioned on the inner circumference of the lens hood. Here I used a time of 120s.
Regards
Tonino
