Linx, a Low-Resolution Spectrograph Project

Post by Joan Guarro Flo »

Hello,

I present to you the Linx, a revised low-resolution spectrograph.

The goal is to achieve a complementary tool for the NOU_T scale, since with it
it would be possible to observe objects around the 14th visual magnitude.

I hope that you like it.

I'm going to say in next few weeks how things are doing.

Cheers, J. Guarro
Attachments

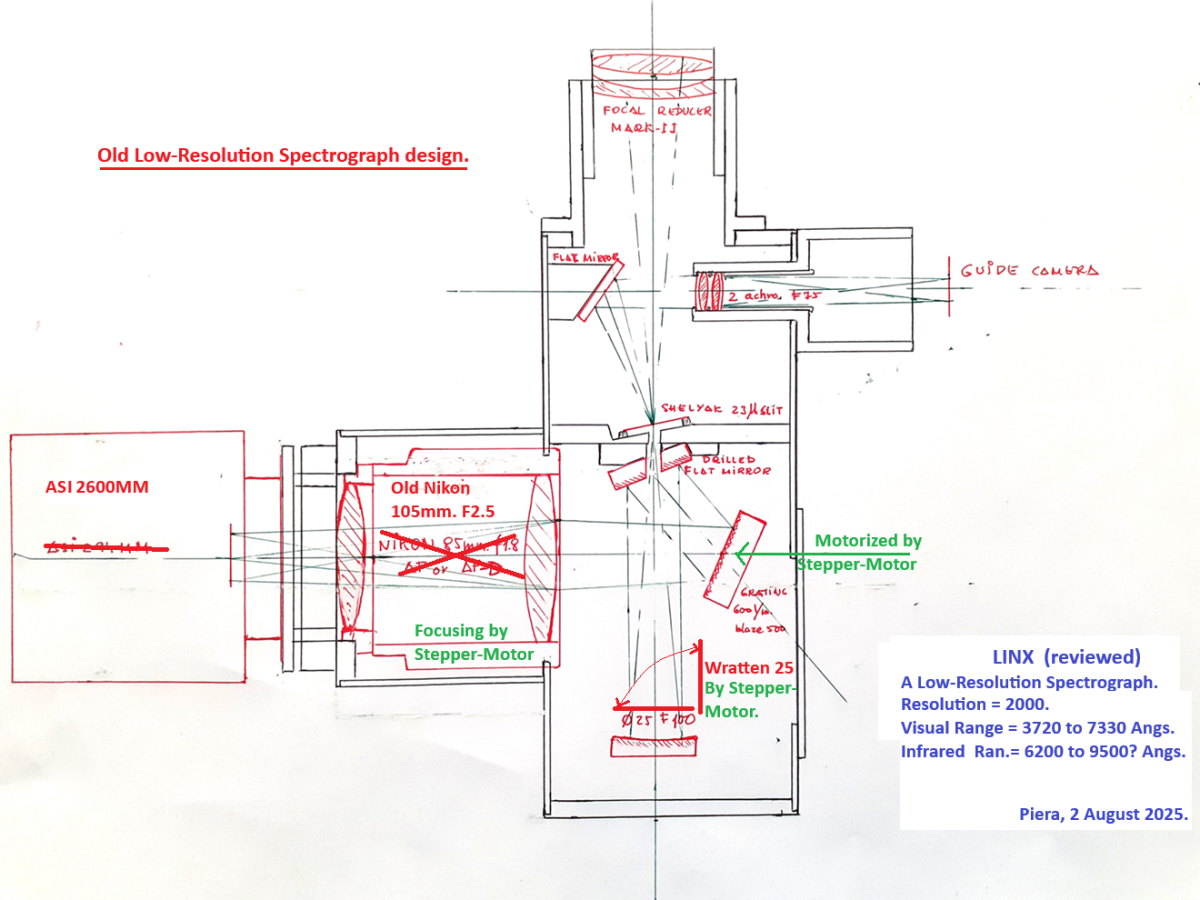

LINX DRAWING.png
