Linx, a Low-Resolution Spectrograph Project

[Joan Guarro Flo]

Hello,

I present to you the Linx, a revised low-resolution spectrograph.

The goal is to achieve a complementary tool for the NOU_T scale, since with it
it would be possible to observe objects around the 14th visual magnitude.

I hope that you like it.

I'm going to say in next few weeks how things are doing.

Cheers, J. Guarro

[Joan Guarro Flo]

Hello,

Among other jobs, I'm working with this low-resolution spectrograph. My intention is to finish it by mid-November,
and make the first test then.

I'm going to send more information in the coming weeks.

Cheers, Joan.

[Joan Guarro Flo]

Hello at all,

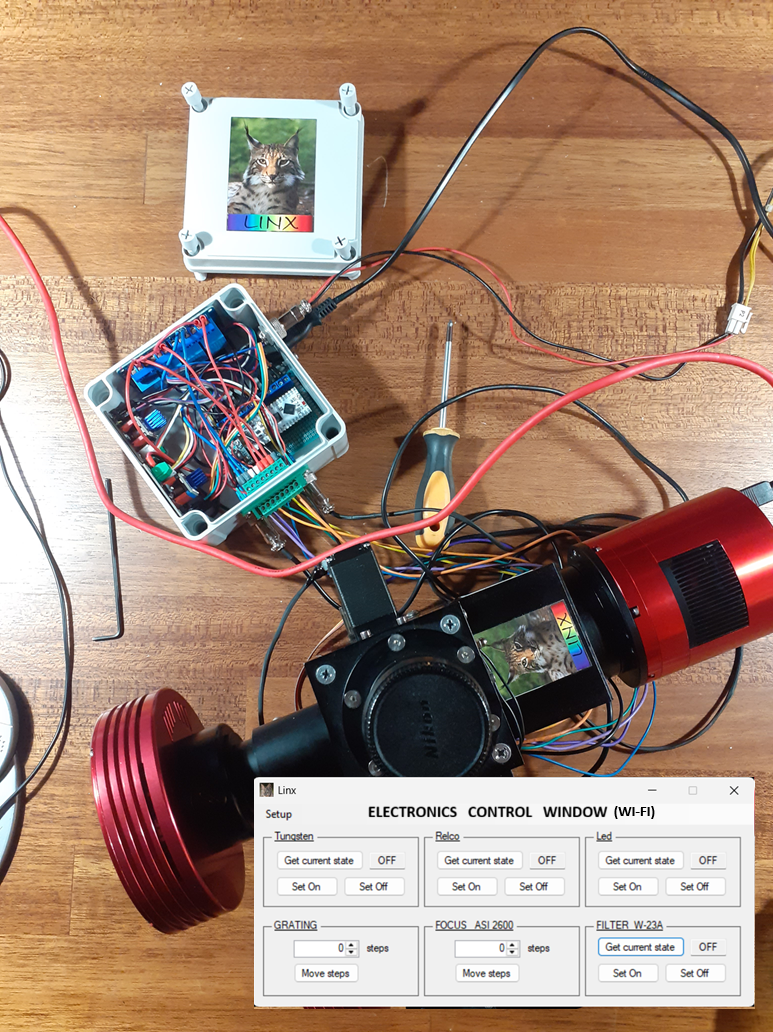

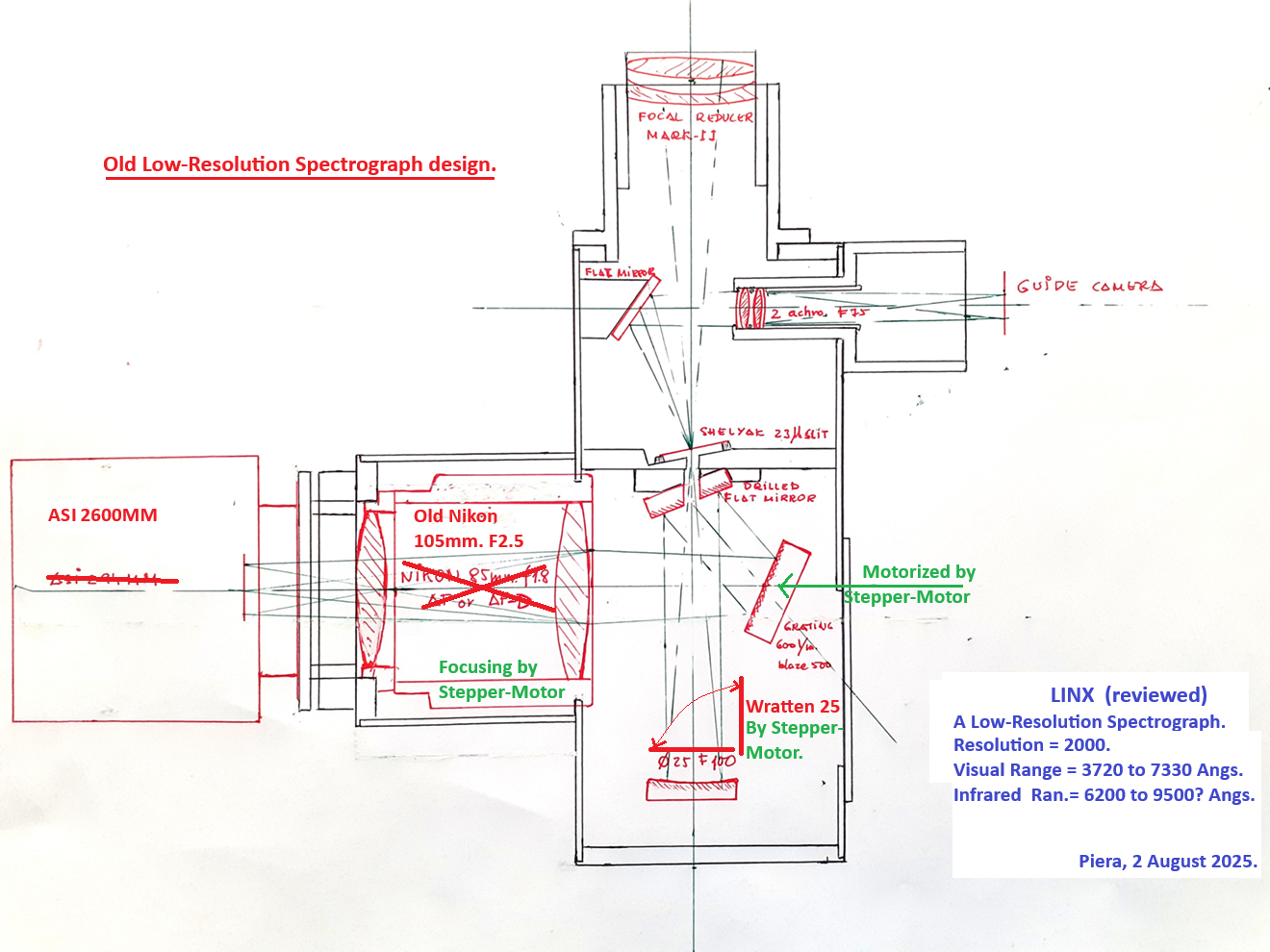

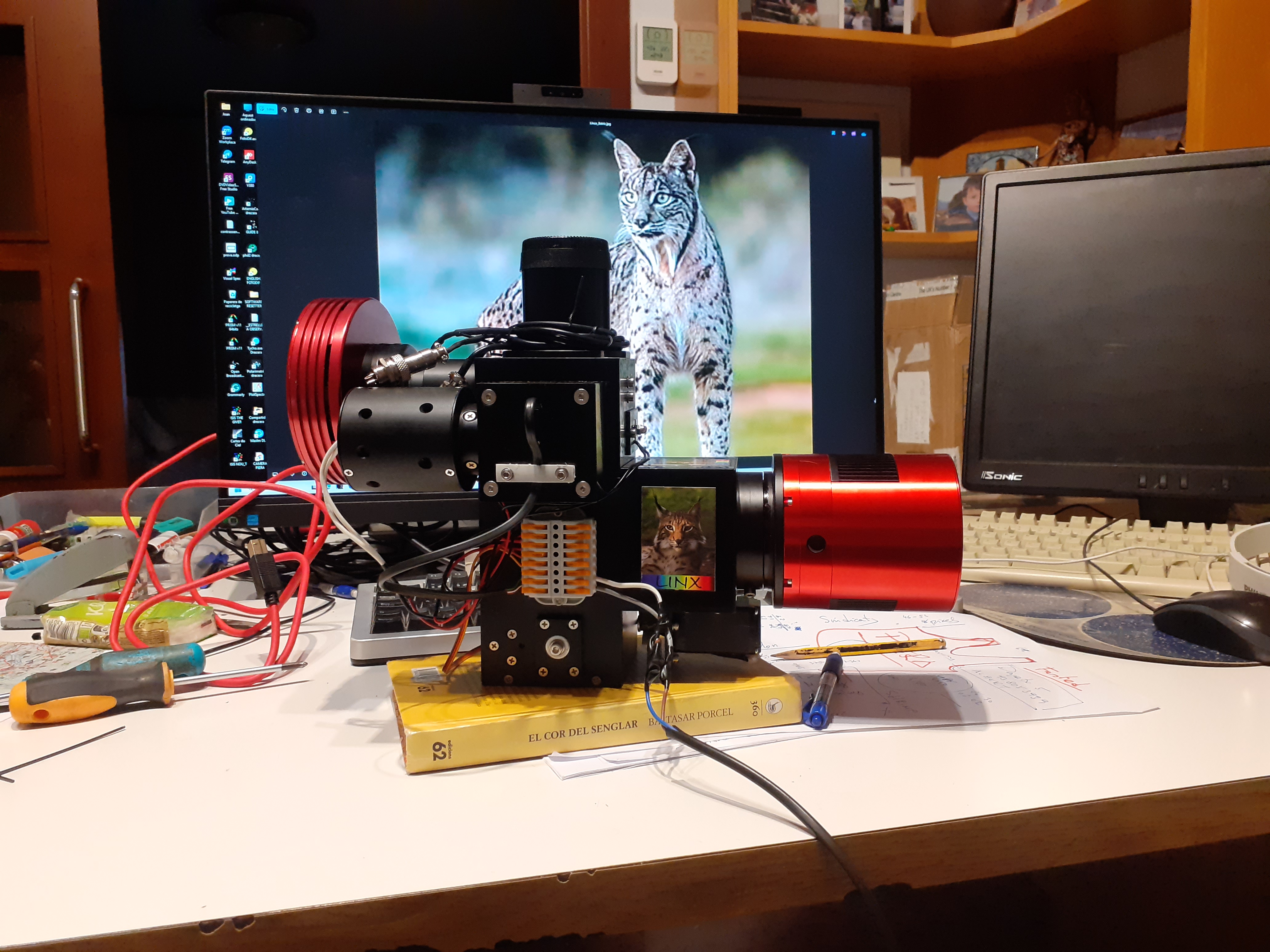

You can see in these pictures the current build state of the two LINX, their mechanical parts are quite finished, meanwhile

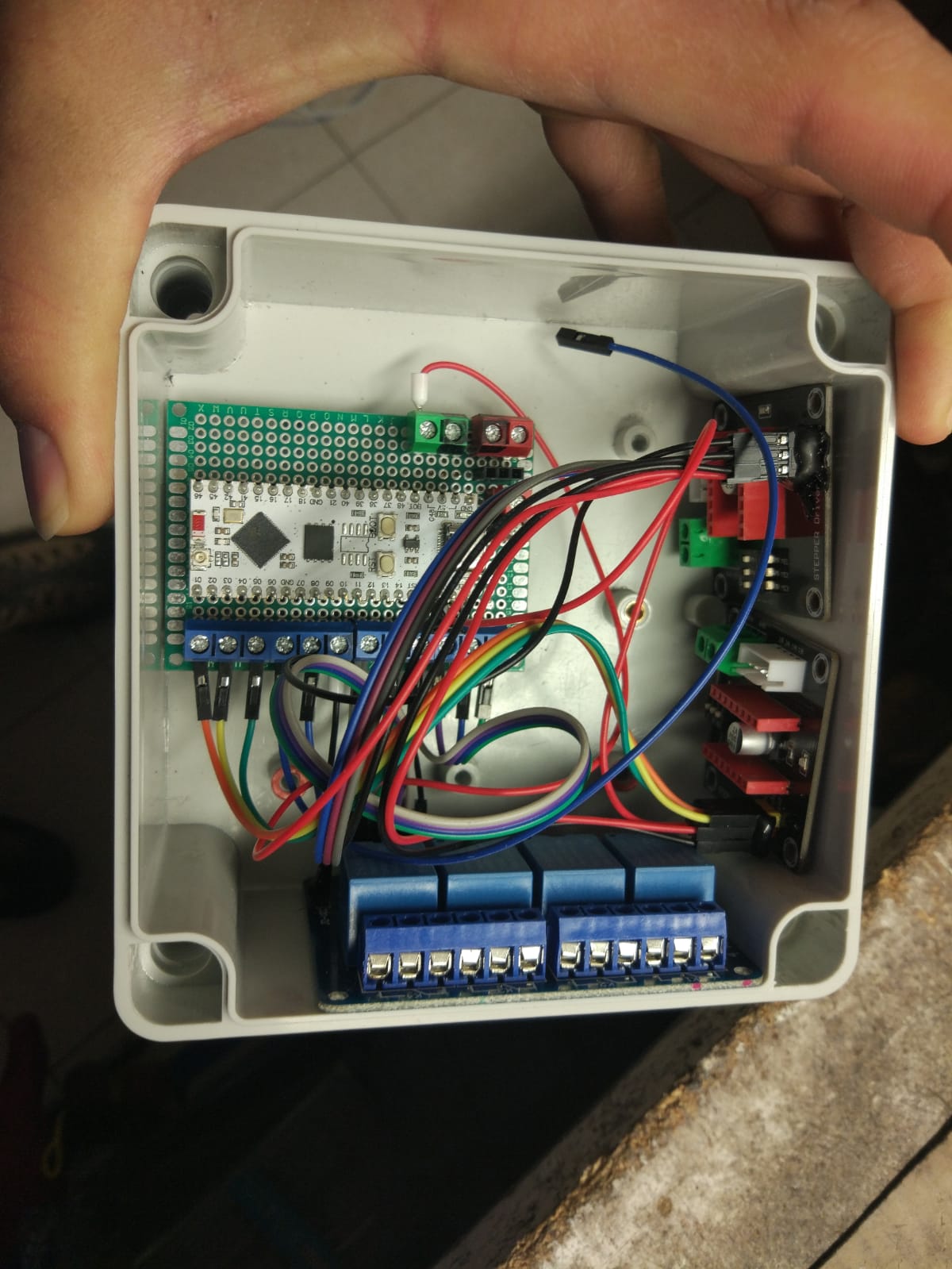

Toni is making their electronic cards and software. Remember that the remote observer needs to act over the objective camera

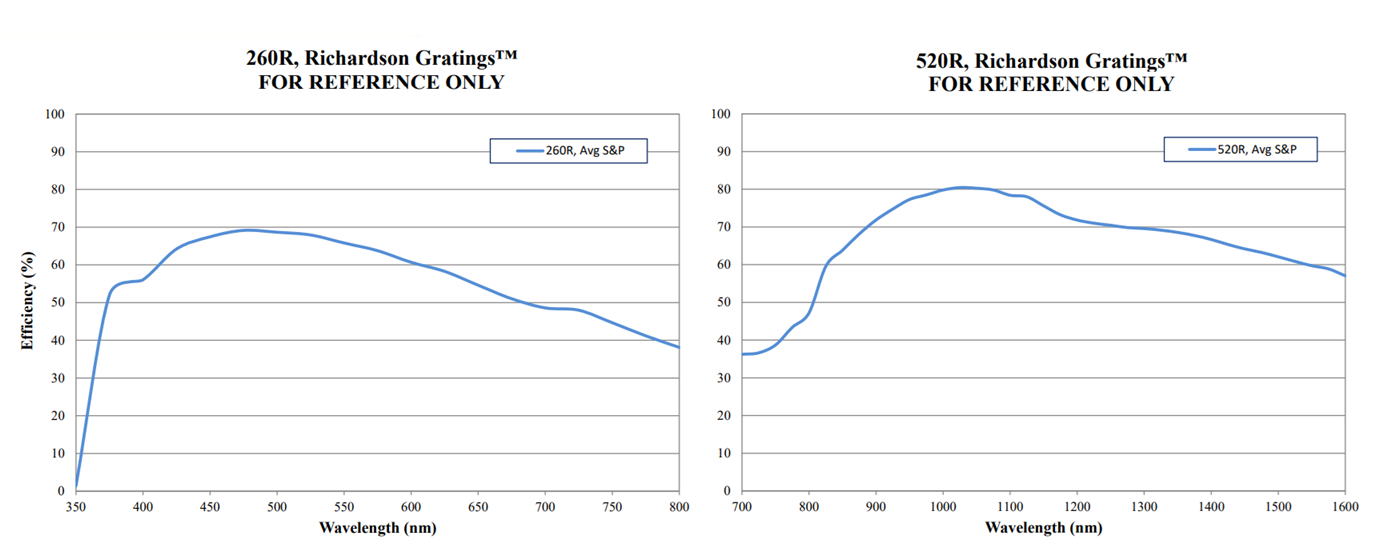

focus, the Wratten 23A filter ON/Off, and over the 600 l/mm grating orientation.

Cheers, J. Guarro.
