CH Cyg 2018

Show your spectra, your results ...

Re: CH Cyg 2018

Postby Vincent Bouttard » Fri Jul 20, 2018 5:00 pm

Hi all,

Please find my contribution to this topic with a low resolution spectrum taken during the last OHP workshop.
20x30s with Alpy600 spectrograph on 250 mm F/4 Newtonian telescope.

Vincent
Attachments
VBO @ ARAS database : Newtonian 250 mm F/4 / Alpy600 / Atik 460EX
Vincent Bouttard

Posts: 40
Joined: Sun Oct 02, 2011 11:09 am
Location: Colmar (France)

Re: CH Cyg 2018

Postby Vincent Bouttard » Thu Jul 26, 2018 7:50 am

Hello

CH Cyg last night. 20 x 30s with Alpy600 on 250 F/4 Newtonian telescope (I've made a mistake on the title of this image about the exposure time).

VBO @ ARAS database : Newtonian 250 mm F/4 / Alpy600 / Atik 460EX
Vincent Bouttard

Posts: 40
Joined: Sun Oct 02, 2011 11:09 am
Location: Colmar (France)

Re: CH Cyg 2018

Postby Francois Teyssier » Thu Jul 26, 2018 5:14 pm

CH Cyg returns to its previous luminosity


Last Echelle spectra:
http://www.astrosurf.com/aras/Aras_DataBase/Symbiotics/CHCyg.htm


Of course, we undergo high cadency monitoring until the return to previous state

François
Francois Teyssier

Posts: 1160
Joined: Fri Sep 23, 2011 1:01 pm
Location: Rouen

Re: CH Cyg 2018

Postby Peter Somogyi » Thu Jul 26, 2018 7:14 pm

Hello Francois,

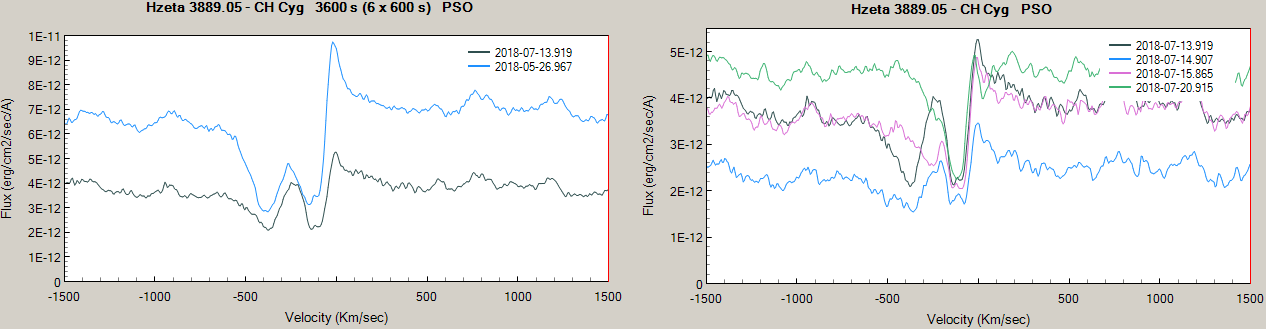

I think the H-beta is considerably affected by the B component's flux level - hence can be mixed by a similar absorption that's prominent clearly in the UV:

The green line is my new observation, unfortunately got bad weather here and can't shoot for 1-2 weeks.
What I suspect, the jet in the line of sight is precessing towards the 0 km/s vrad (maybe approached it by now).

I'd rather recommend looking at the sudden EW(H-alpha) drop happening since 07.12 - that's what the daily spectra show in the database, just cannot graph so many data.

Cheers,
Peter
Peter Somogyi

Posts: 331
Joined: Sun Jul 13, 2014 8:56 am

Re: CH Cyg 2018

Postby James Foster » Mon Sep 03, 2018 2:38 pm

Here is what I got on CH Cyg last week using the LhiresIII with a 1800 l/mm grating with 35 micron slit:
I'll try getting it at CaK and Hb when the clouds go away!

Sincerely Yours,

James Foster
Los Angeles, CA
James R. Foster
Lhires III (2400 & 1800 ln/mm Grat) Spectroscope,
LISA Visual & IR Kit Spectroscope,
Alpy 600, and Star Analyzer 200
James Foster

Posts: 242
Joined: Sun Jan 24, 2016 7:14 am

Re: CH Cyg 2018

Postby Peter Somogyi » Sun Sep 16, 2018 12:20 pm

CH Cyg went into a blue minima again (see aavso).

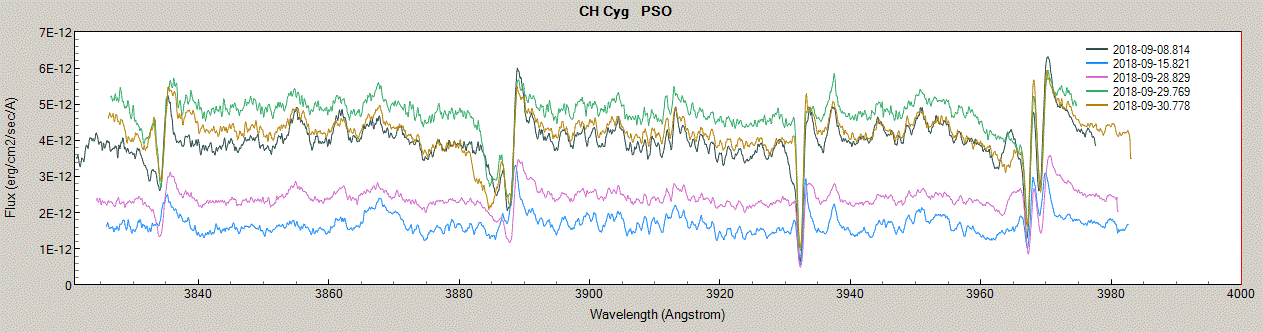

By fortune with yesterday session, I've got 2 spectra close by 1 week showing high & low state having their own flux (using the wide slit, ref.: Vega/calspec):

Included my spectrum on 2018.07.07 which was in the middle of the earlier minima.
I am curious what is causing these events.
Peter
Peter Somogyi

Posts: 331
Joined: Sun Jul 13, 2014 8:56 am

Re: CH Cyg 2018

Postby James Foster » Mon Sep 17, 2018 9:48 am

To: Peter,

RE:"...I am curious what is causing these events."
Not sure about this myself, but here is my LhiresIII CaK data using the 1800 m/ln grating and 35micron slit (08Sep18) in the same near UV region:


Here is a 2D i did to more clearly see the processed Isis 2D _CH CygCaK.fits file via PS motion blur filter.


Let me know if you see anything strange here, as the short end of the spectrum sometimes does not "line-up" with the H-lines like the center and high end do.

James
James R. Foster
Lhires III (2400 & 1800 ln/mm Grat) Spectroscope,
LISA Visual & IR Kit Spectroscope,
Alpy 600, and Star Analyzer 200
James Foster

Posts: 242
Joined: Sun Jan 24, 2016 7:14 am
